x* Email info@dangerboyindustries.com for custom wheelset request including Onyx hubs and colour mix-match.

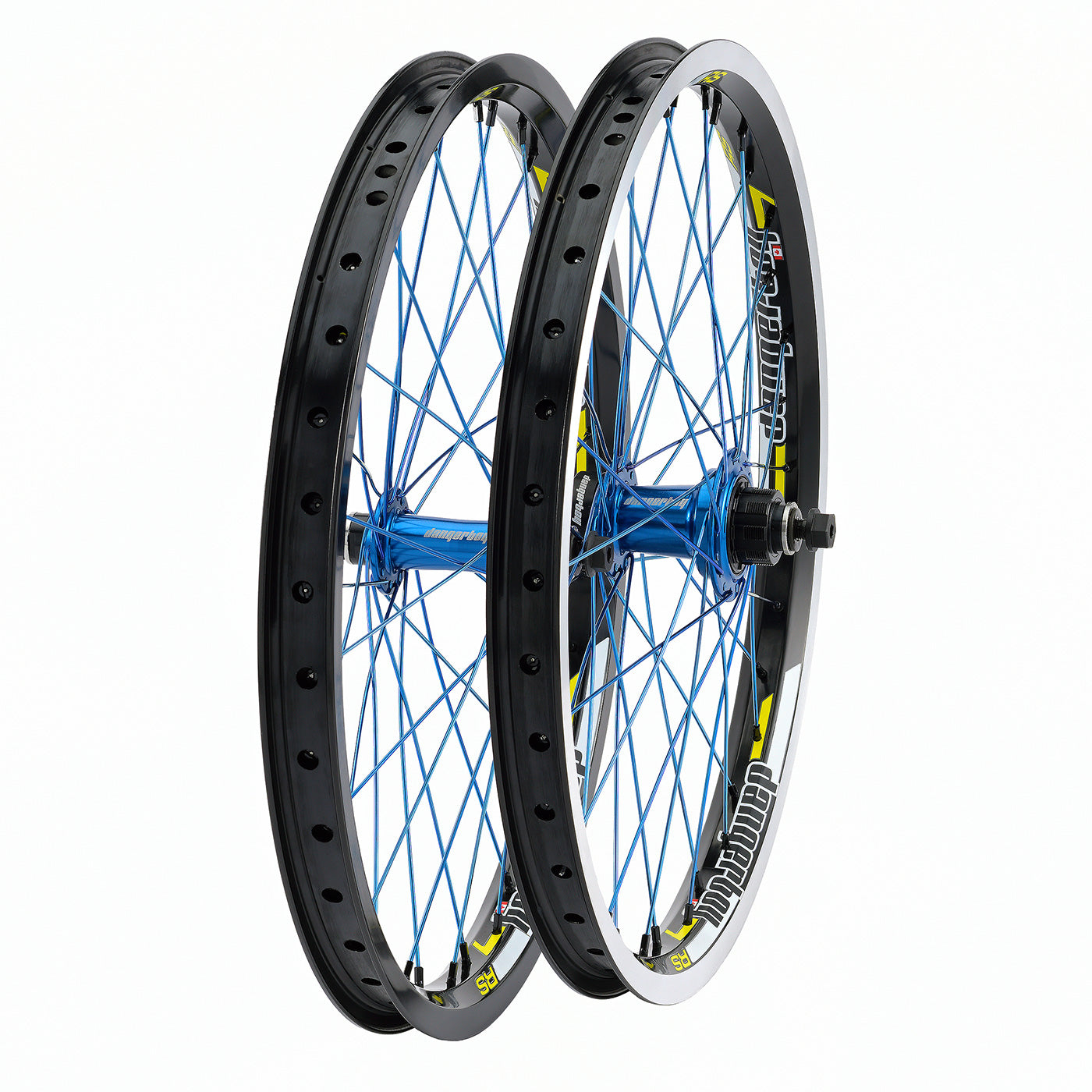

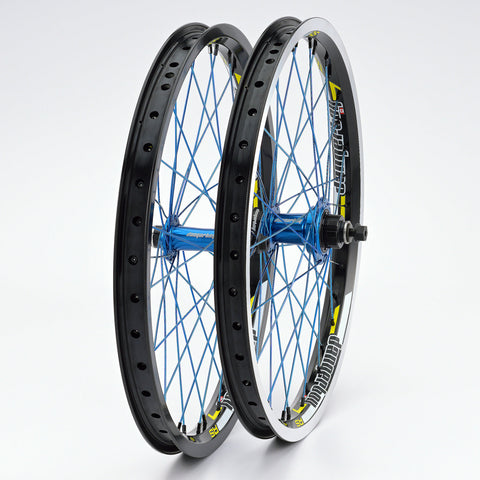

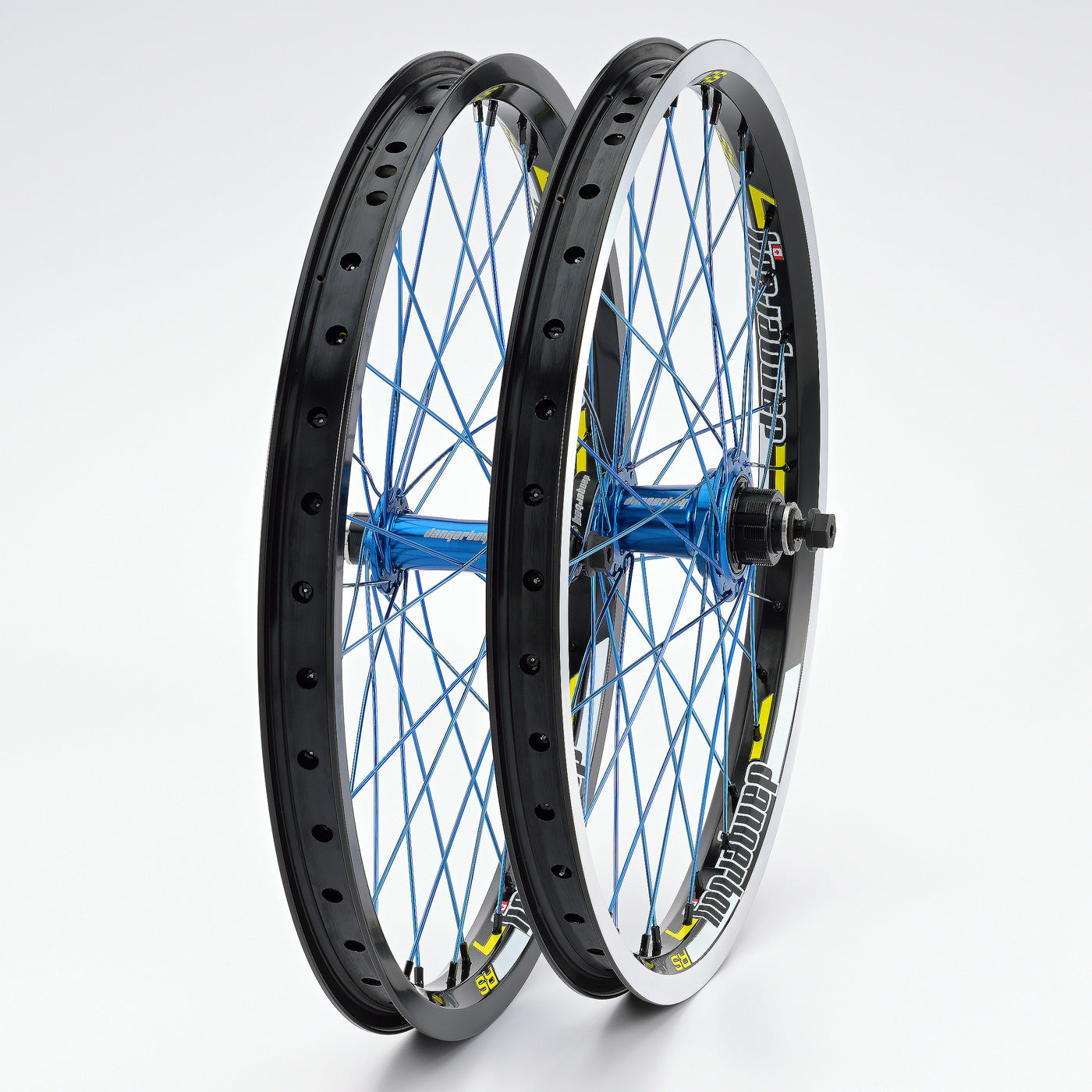

DB aluminum wheels are here with newly redesigned driver providing incredible acceleration wherever needed. Higher flange on drive side is reducing spoke length and adding required responsiveness to each of your pedal strokes.
DB Race Series rims are made from 6000 T-10 Aluminium, offering the best strength to weight ratio in the industry. These rims are built to last!

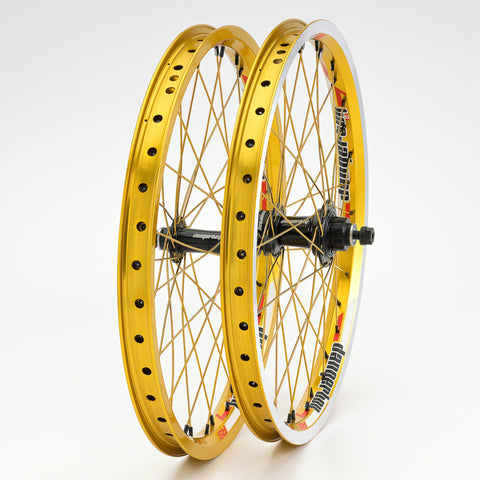

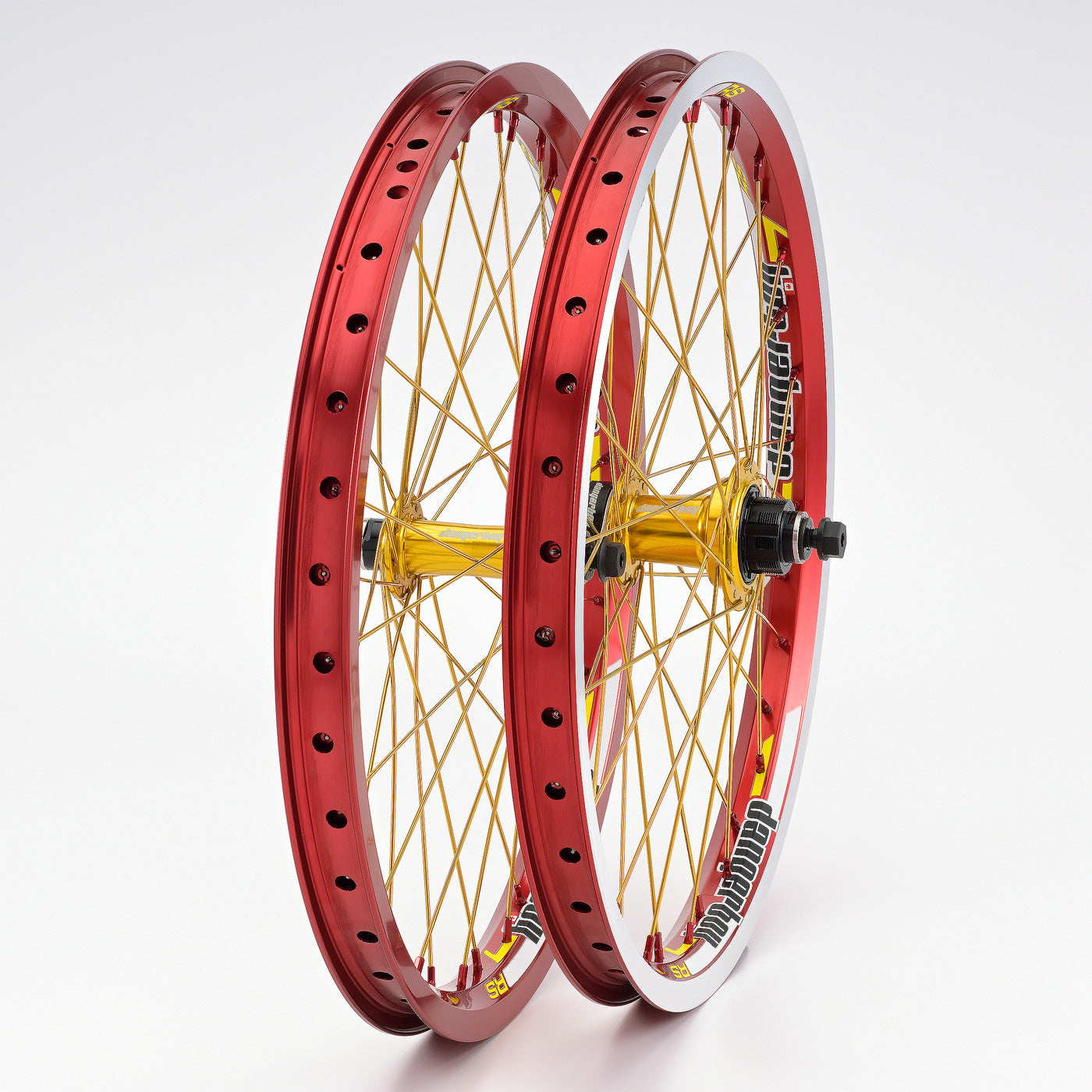

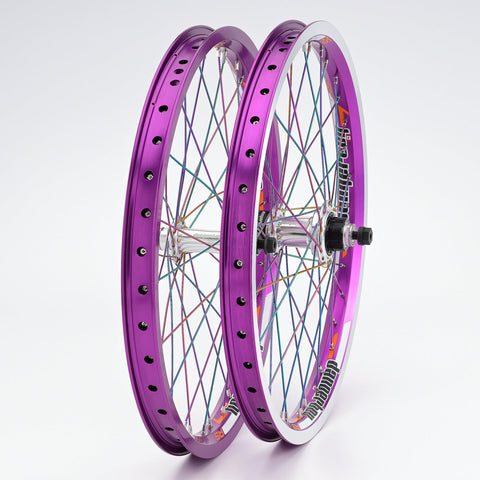

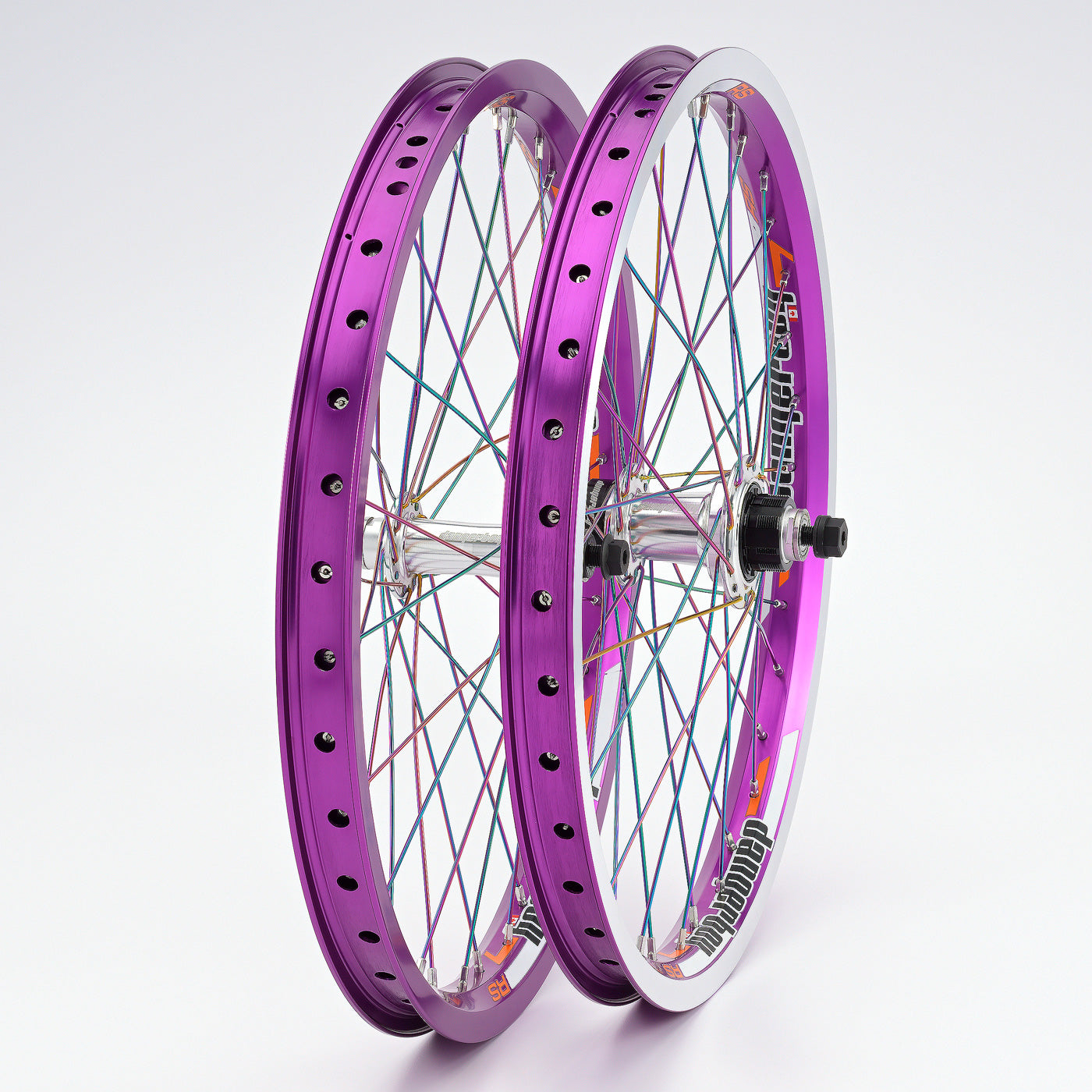

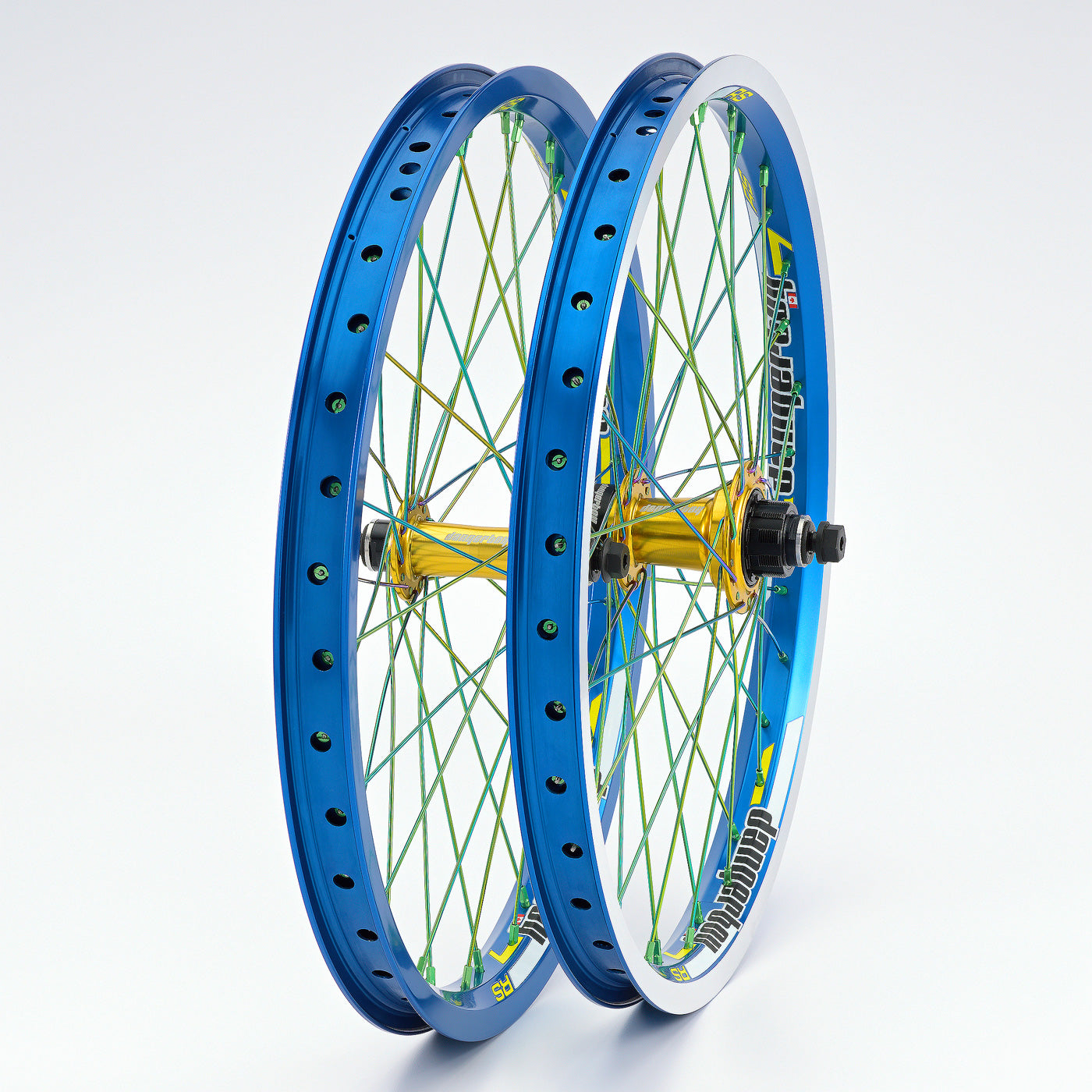

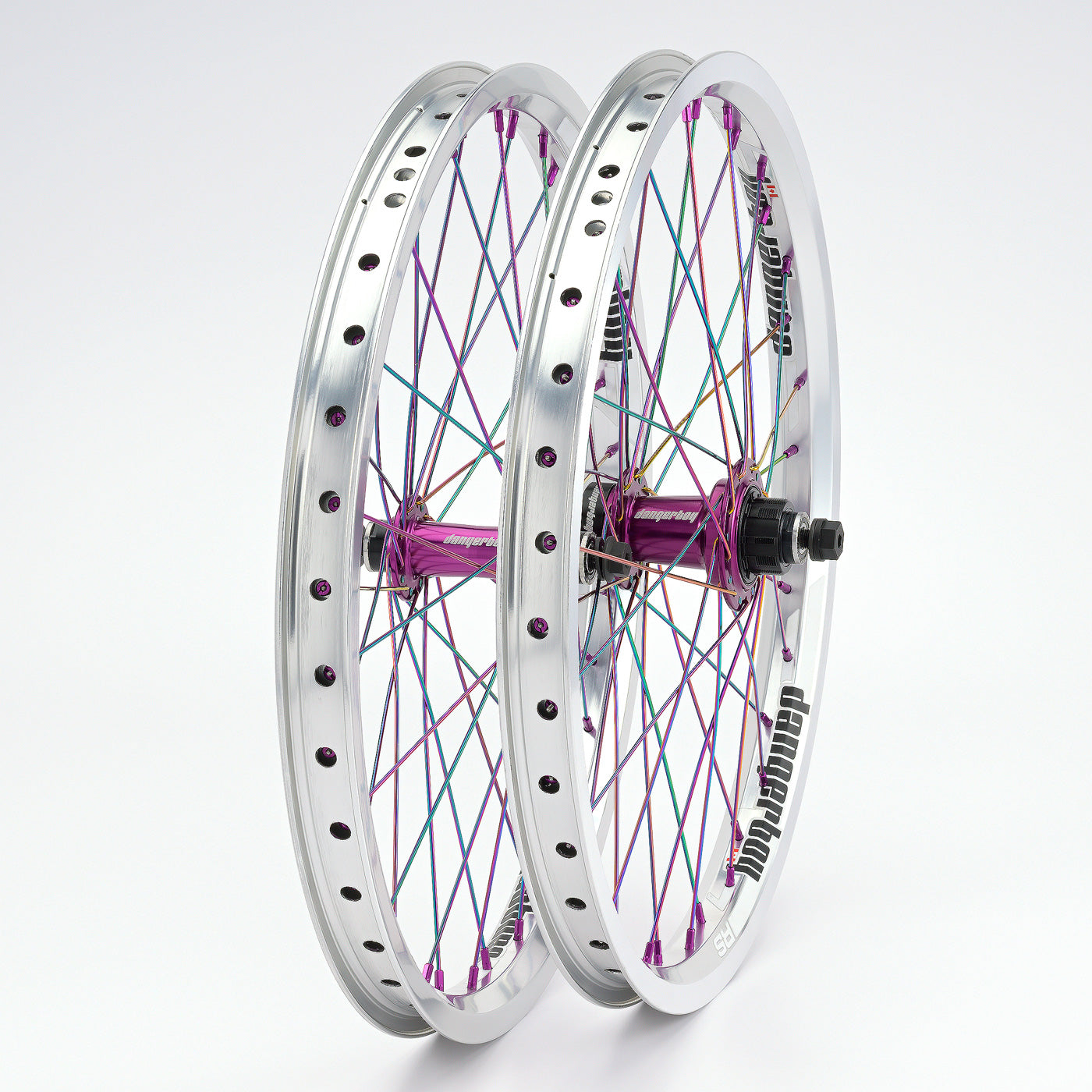

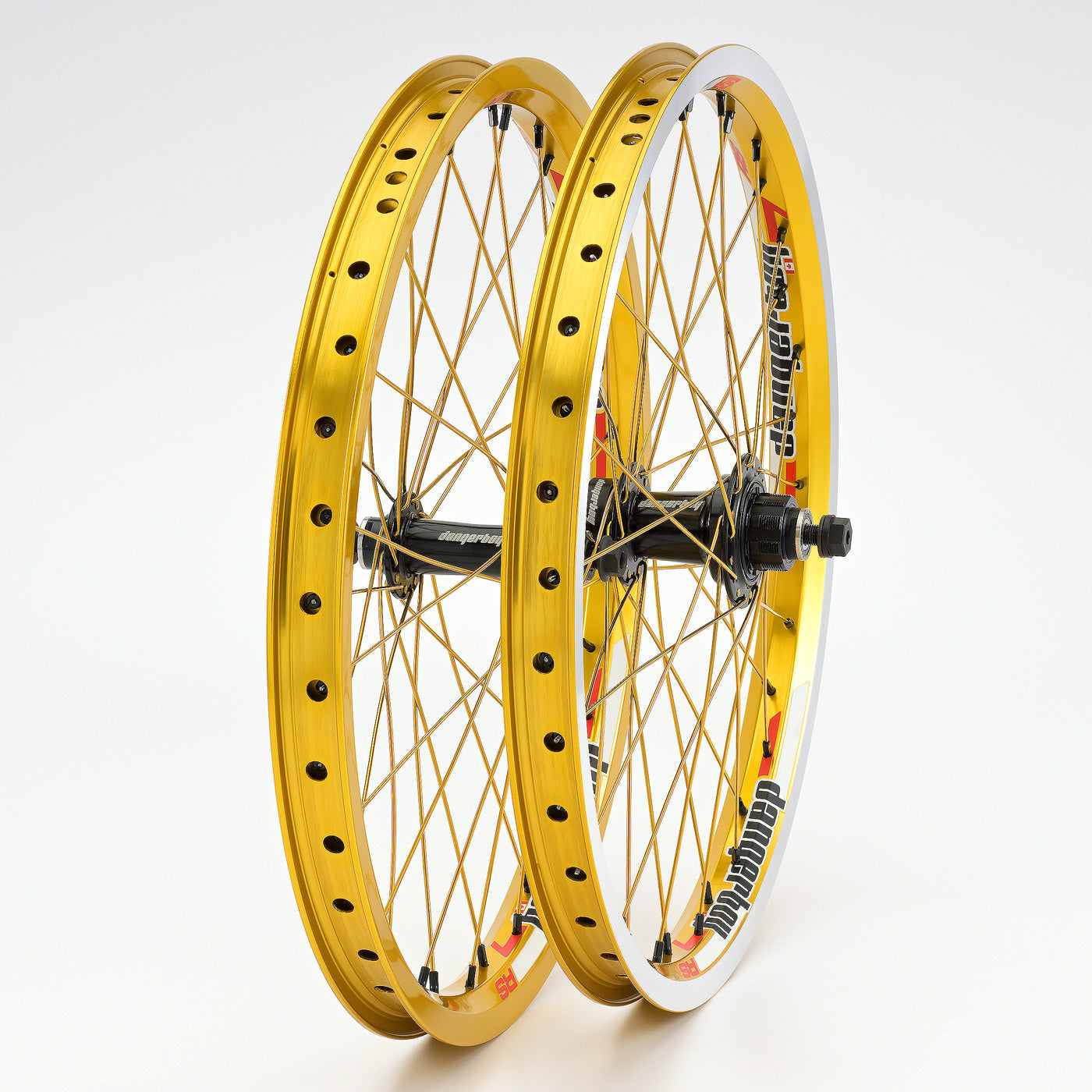

Anodized finish with Six colors to choose from: Silver, Stealth Black, 24K Gold, Infra-Red, Impact Blue or Purple Haze.
Choose your speed element colors to customize your rims and make them unique. White, Orange, Yellow or Blue high quality decals.
DB Custom built wheel kits utilize Mini and Expert DB hubs, with Titanium and HD spokes.
DB HUBS
Body 6061-T6 Anodized Aluminum
Driver 7075 Aluminum (hard anodized) shimano compatible
6 pawls w/ 80T ratchet
Sealed roller bearings / front hub 2x / /rear hub 4x /
Alu axle 10 mm diameter ( mini ) w/ M5 bolts
Alu axle 15 mm diameter ( pro ) w/ 10 mm bolts
Steel bolts
Specifications:
Front:
100mm
Flange to Flange 72 mm
Flange Dia (center hole to center hole) 47 mm
Hole dia 2.5 mm
Weight 115g mini w 133g w bolts
Weight 190g pro w 10 mm bolts
Rear:
110 mm
Flange to Flange 55 mm
Flange non drive side 45 mm
Flange drive side 58 mm
Non drive side to flange 26 mm
Drive side to flange 26 mm
Pro: 40 mm bolts M10 x 1.0
Weight 297g w/o bolts
Mini: 30 mm bolts M5
Weight 287g w/o bolts
Centerlock disc brake w alu lock ring
Driver alu 7075 w 10 mm cog space and alu lock ring
6 pawls
60T ratchet
3 sealed bearings
