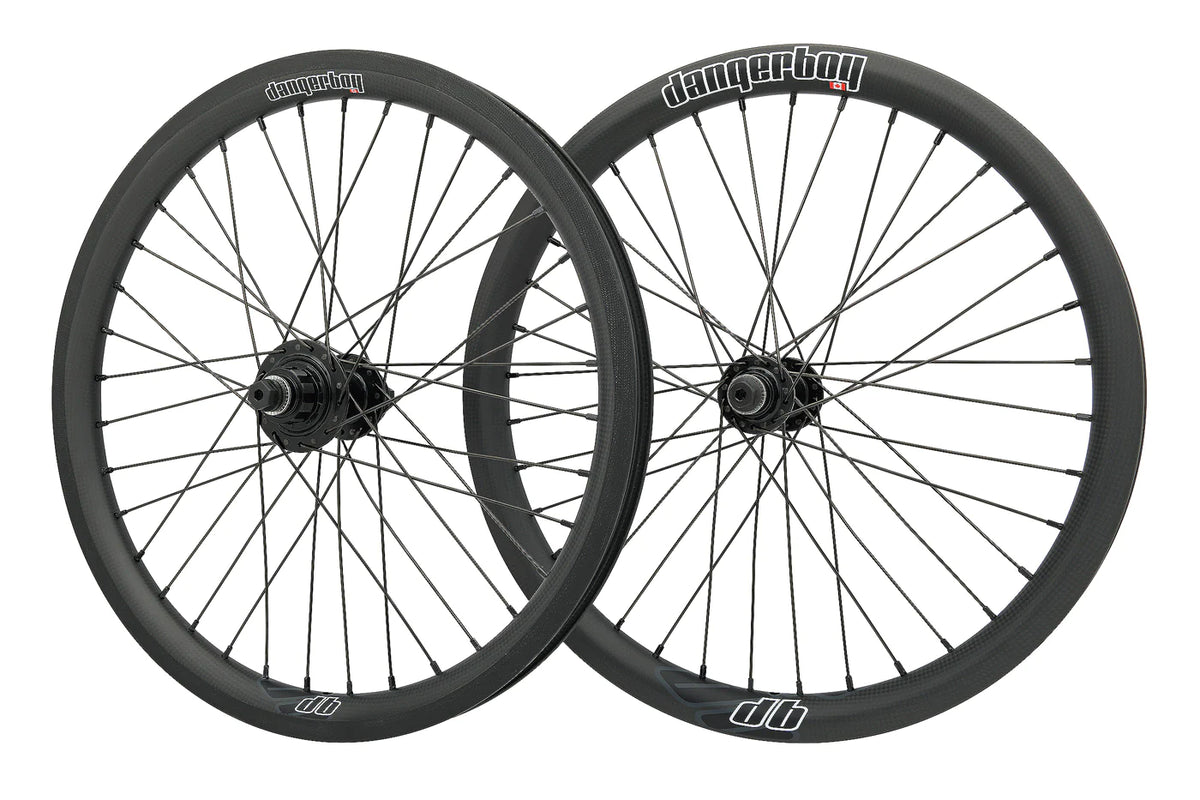

DB Carbon Wheelset
DB Carbon Wheelset

DB Carbon Wheelset

Availability: In Stock
$1,749.00
$1,749.00
Size: Mini 28h
Hub Color: Black
Spokes & Nipple: Ion
Subtotal: $1,749.00
DB Carbon Wheelset

DB Carbon Wheelset

$1,749.00
DB Carbon Wheelset
DB Carbon Wheelset

DB Carbon Wheelset

$1,749.00
Size: Mini 28h
Hub Color: Black
Spokes & Nipple: Ion
Description
Description
x
* Email info@dangerboyindustries.com for custom wheelset request including Onyx hubs and personalized hubs, spokes and nipples colour combo.

Dangerboy Carbon wheelset available in; Mini, Junior, Expert, Pro Lite and Pro.
HUB and Spoke color options including Titanium spokes upgrade.

Dangerboy Industries in-house Precision Engineering has resulted in the lightest, strongest, and fastest BMX Carbon Fiber rim.
Our carbon wheels offer an incredible weight to strength-performance ratio. Reducing rotational weight while maintaining better energy transfer, all with less lateral flex.

Accelerate faster compared to all aluminum rims, holding their speed even in the fastest breakneck sprints.
DB Custom built wheel kits utilize Mini and Expert DB hubs, with Titanium and HD spokes.


Dangerboy HUBS
Body 6061-T6 Anodized Aluminum
Driver 7075 Aluminum (hard anodized) shimano compatible
6 pawls w/ 80T ratchet
Sealed roller bearings / front hub 2x / /rear hub 4x /
Alu axle 10 mm diameter ( mini ) w/ M5 bolts
Alu axle 15 mm diameter ( pro ) w/ 10 mm bolts
Steel bolts


Specifications:

Front:
100mm
Flange to Flange 72 mm
Flange Dia (center hole to center hole) 47 mm
Hole dia 2.5 mm
Weight 115g mini w 133g w bolts
Weight 190g pro w 10 mm bolts

Rear:
110 mm
Flange to Flange 55 mm
Flange non drive side 45 mm
Flange drive side 58 mm
Non drive side to flange 26 mm
Drive side to flange 26 mm

Pro: 40 mm bolts M10 x 1.0
Weight 297g w/o bolts

Mini: 30 mm bolts M5
Weight  287g w/o bolts
Centerlock disc brake w alu lock ring
Driver alu 7075 w 10 mm cog space and alu lock ring
6 pawls
60T ratchet
3 sealed bearings
